Model Series
COOL 10-270
CP COOL Refrigeration Air Dryer
SKU Model: COOL 10-270
Refrigeration dryers use a refrigerant gas in order to cool the compressed air. As a result the water from the air condenses and can be removed. With this technique we can reach in the COOL range a pressure dew point of 7 °C. As a result, the refrigeration technology is by far the most used dryer technology, complying for more than 95 % of industrial applications. Refrigerant dryers are commonly used with pneumatic applications and in the general industry (e.g. engineering, steel, paper, tannery, garage).

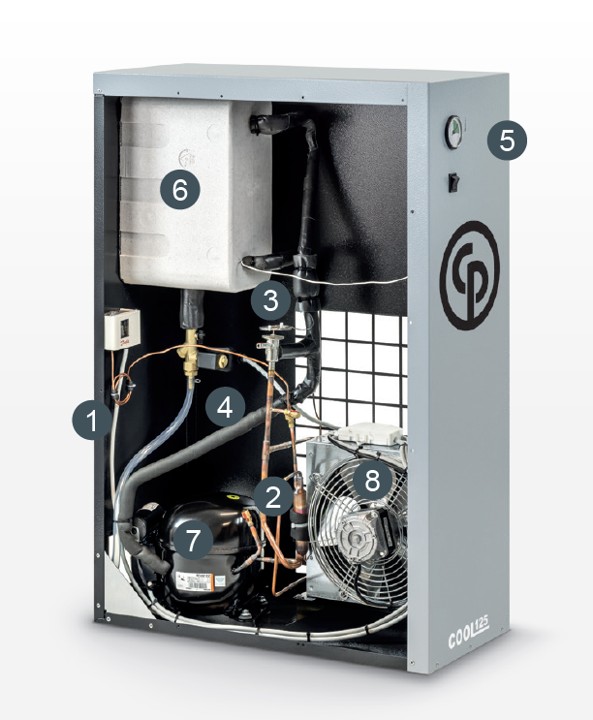

1 Capillary tube in order to considerably reduce the pressure and temperature of the refrigerant, improving the cooling process.
2 Refrigerant filter in order to protect the capillary from some possible dirty particles.
3 Hot gas by-pass valve:
• Injects hot gas from compressor discharge into suction / liquid separator
• Keeps refrigeration capacity in all load conditions
• Maintains constant pressure in the evaporator, avoiding freezing
4 Timer drain ensures a proper drain of the condensate.
5 Control panel: PDP indicator (green zone) & main on-off switch.
6 Air/Air and Air/Refrigerant Heat Exchanger with high thermal exchange and low load losses. Integrated water separator allows a highly efficient water-air separation.
7 Refrigerant compressor driven by an electric motor, cooled using refrigerant fluid and protected against thermal overload.
8 Refrigerant condenser air-cooled and with a large exchange surface for high thermal exchange.
Compact & efficient
The COOL range offers reliable components in a simple vertical lay-out:
• Simple to install and easy to operate
• Easy access for quick servicing resulting
in low maintenance costs
• Efficient cooling system
• Flexible transportation
• Small footprint
• Stable dew point
Applications
• Pneumatic tools and equipment
• Pneumatic control systems
• Painting application
• Packaging
• Injection molding
• Car shop
• Tire inflation
Main benefits
• Remove the water pollution from your network
• Refrigeration dryer is a simple, low maintenance technology
• Extremely easy to install
• Very compact equipment fits in a minimum space
• Low maintenance requirement
• Compatible with any compressor technology
• Very low energy consumption
• Check your air quality with the dew point indicator
• Higher final product quality
• Increase your overall productivity
Risks to avoid
Humid, unclean compressed air can cause:
• Corrosion, pollution, leakage and rust of the air net (pipes) and the downstream equipment/tools
• Costly interruptions of the production
• A decreased efficiency of the equipment/tools used
• Reduction of the life span of all equipment involved
• Risk of water contamination in the air network, with potential freezing in winter time
• Increased maintenance costs
• Lower quality of the final product and potential risk of product recalls
