Gas Compressor Package

Model Series

YD2-140GH-OL

Gas Compressor Package

SKU Model: YD2-140GH-OL

compressor

Model YD2-140GH-OL adalah kompresor resiprokasi multi-tahap Tipe-Y yang dirancang khusus untuk pemulihan campuran "Off-Gas" (campuran CO2, H2, N2). Konfigurasi Tipe-Y menawarkan keseimbangan mekanis yang sangat baik dan getaran yang rendah, menjadikannya sangat cocok untuk aplikasi berkapasitas menengah hingga besar di mana stabilitas sangat diutamakan. Desain bebas minyaknya memastikan gas yang dipulihkan tetap bebas dari kontaminasi pelumas, yang sangat penting untuk proses pupuk atau kimia di hilir.

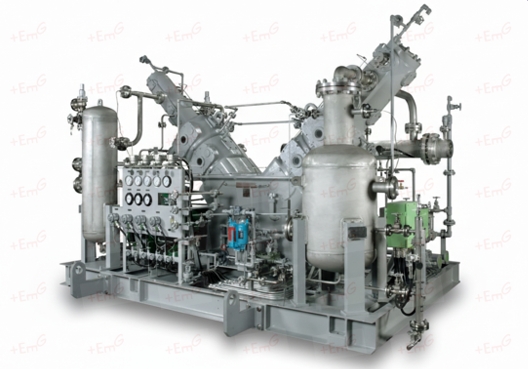

The Model YD2-140GH-OL is a Y-type, multi-stage reciprocating compressor specifically designed for mixed "Off-Gas" recovery (CO2, H2, N2 mixture). The Y-type configuration offers excellent mechanical balance and reduced vibration, making it highly suitable for medium-to-large capacity applications where stability is paramount. Its oil-free design ensures that the recovered gas remains free from lubricant contamination, which is critical for downstream fertilizer or chemical processes.

Technical Specifications
Handled Gas Off Gas (CO2:59%. H2:31%)
Motor Output 110 kW
No. of Stage 3 Stages
Cooling Method Water-Cooled
Compressor Type Y-Type Reciprocating
Lubrication Type Oil-Free Cylinder
Suction Pressure 6 kglcm2A
Discharge Pressure 15.03 kg/cm2A
Capacity (Mass Flow) 1,250 kglh
Cylinder Configuration Y-Shape / V Shape

1. Fitur Desain & Keunggulan Utama

  • Konfigurasi Tipe-Y: Memberikan keseimbangan dinamis yang unggul dibandingkan tipe vertikal standar, mengurangi beban pondasi dan getaran.
  • Kompresi 3-Tahap: Dioptimalkan untuk efisiensi dalam meningkatkan tekanan dari tingkat menengah ke tinggi sambil mengelola kenaikan suhu.
  • Jalur Gas Bebas Minyak: Menjamin kemurnian tinggi dari gas campuran, penting untuk proses produksi pupuk.
  • Pendinginan Air yang Kuat: Dirancang untuk menangani panas kompresi yang dihasilkan oleh campuran gas secara efektif
YD2-140GH-OL

2.  Aplikasi Industri

  • Industri Pupuk: Pemulihan off-gas di pabrik Urea dan Amonia.
  • Pemrosesan Kimia: Penanganan dan daur ulang gas campuran.
  • Penangkapan Karbon: Kompresi gas kaya CO2.
  • Pemulihan Gas: Daur ulang gas buang proses.

3. Ruang Lingkup Pasokan

Paket kompresor standar umumnya meliputi:

  • Blok Utama Kompresor YD2 (Tipe-Y).
  • Motor Penggerak Utama 110 kW.
  • Baseplate / Skid Umum.
  • ·Intercooler & Aftercooler.
  • Peredam Pulsasi & Instrumentasi.

4. Referensi Proyek

Karnaphuli Fertilizer Company Limited (KAFCO). Kompresor Off Gas (Campuran CO2, H2, N2). Status berhasil commissioned dan beroperasi.

1.  Key Design Features & Advantages

  • Y-Type Configuration: Provides superior dynamic balance compared to standard vertical types, reducing foundation load and vibration.
  • 3-Stage Compression: Optimized for efficiency in elevating pressure from medium to high levels while managing temperature rise.
  • Oil-Free Gas Path: Ensures high purity of the mixed gas, essential for fertilizer production processes.
  • Robust Water Cooling: Designed to effectively handle the heat of compression generated by mixed gases.

2. Application

  • Fertilizer Industry: Off-gas recovery in Urea and Ammonia plants.
  • Chemical Processing: Mixed gas handling and recycling.
  • Carbon Capture: CO2 rich gas compression.
  • Gas Recovery: Recycling of process vent gases.

3. Scope of Suppy

The standard package typically includes:

  • YD2 Compressor Bare Block (Y-Type)
  • 110 kW Main Driving Motor.
  • Common Baseplate / Skid.
  • Intercoolers & Aftercooler.
  • Pulsation Dampeners & Instrumentation.

4. Project Reference

Karnaphuli Fertilizer Company Limited (KAFCO). Off Gas Compressor (CO2, H2, N2 Mix). Successfully commissioned and operating
