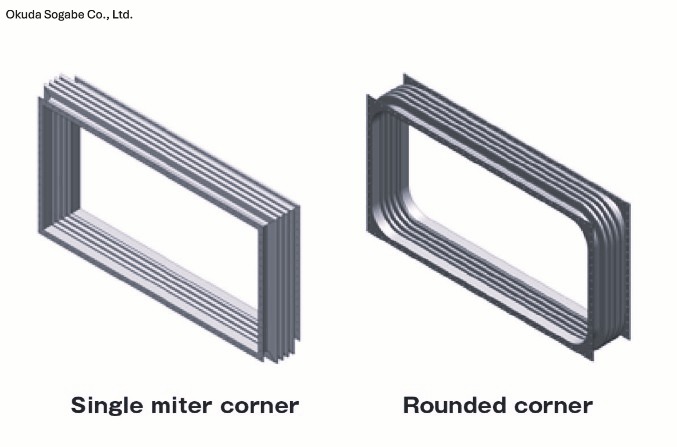

Bellows type expansion joint - Rectangular Type
This expansion joint is suitable for a rectangular duct in a low pressure. In the case of large lateral defection, the double bellows type are applied. There are two types of the corner shape for “single miter corner” and “rounded corner” which relatively absorb larger displacement than miter. The OSK make round type has no longitudinal weld on the corner and higher reliability.
Supplier: Okuda Sogabe Co., Ltd. • Jepang

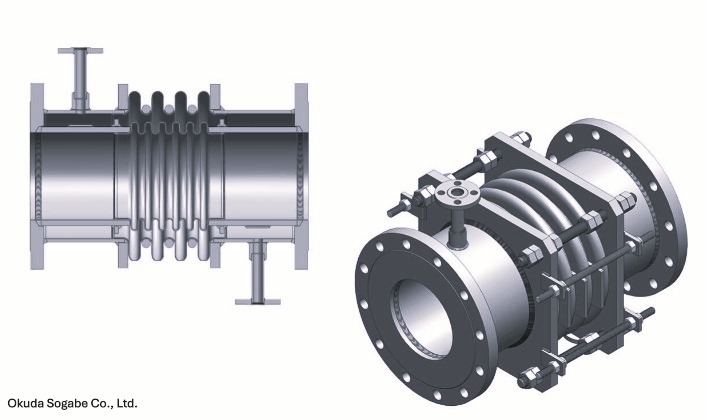

Bellows type expansion joint - Jacket Type
In the case of fluid becoming solid or high viscosity in ambient temperature, in order to assure the liquidity by heating up, the bellows has a double pipe structure where the product flows in its inner side and the heating medium flows in its outer side.
Supplier: Okuda Sogabe Co., Ltd. • Jepang
Bellows type expansion joint - Bent Type Pressure balanced
In angle type of pressure balanced expansion joint, the bellows is placed in the straight run of the curved pipe and the compensating bellows are connected behind the elbow and the internal pressure thrust is canceled out in the expansion joint. If the bellows are double, the further more larger lateral deflection can be absorbed.
Supplier: Okuda Sogabe Co., Ltd. • Jepang

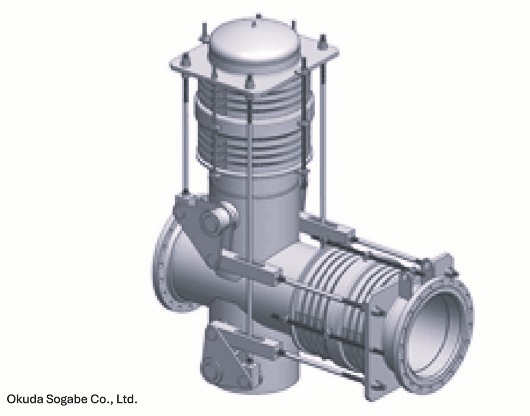

Bellows type expansion joint - L Type Pressure balanced
L type pressure balanced expansion joint can absorb expansion and contraction without generating thrust load in the straight of the piping. The outboard compensating bellows can be arranged in other direction, compared to in-line type pressure balanced expansion joint, The interference with adjacent piping can be mitigated when arranged in parallel.
Supplier: Okuda Sogabe Co., Ltd. • Jepang

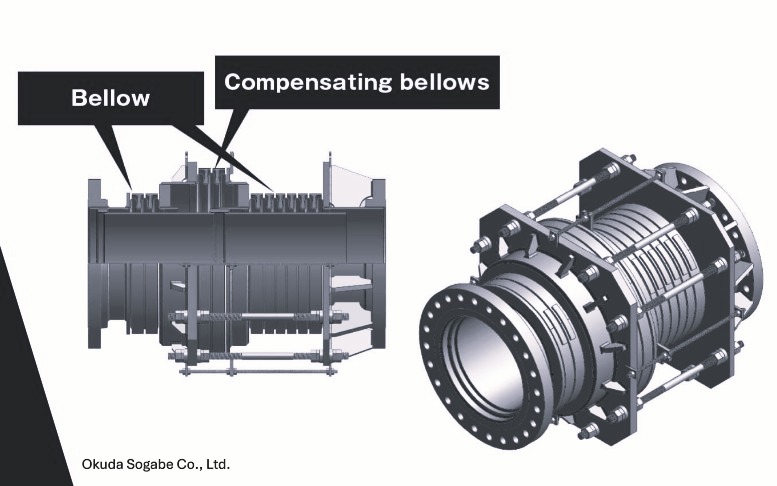

Bellows type expansion joint - In-line Type Pressure Balanced
In-line pressure balanced expansion joint is designed to absorb axial movement and/or lateral deflection while restraining the pressure thrust by means of tie devices interconnecting the line bellows with outboard compensating bellows also subjected to line pressure, Each bellows set is designed to absorb the axial movement and usually the line bellows will absorb the lateral deflection. This type of expansion joint is used in a straight run of piping.
Supplier: Okuda Sogabe Co., Ltd. • Jepang

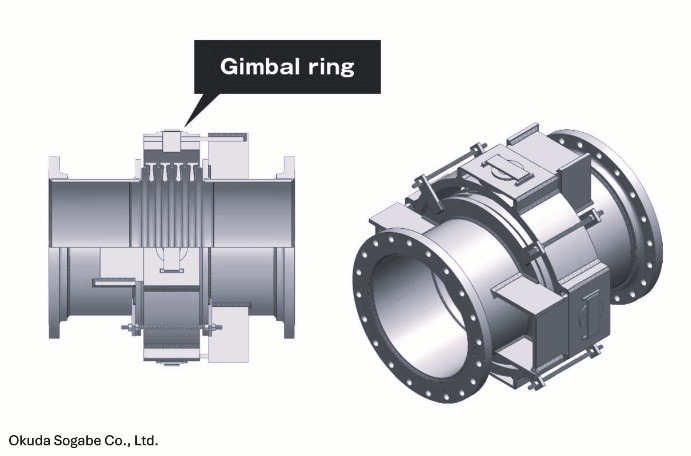

Bellows type expansion joint - Gimbal type
Gimbal Type of Expansion Joint consists of two set of hinge pins and arms on the Gimbal ring at 90°degrees, which is capable of absorbing displacement combined in two direction at the same time.
Supplier: Okuda Sogabe Co., Ltd. • Jepang

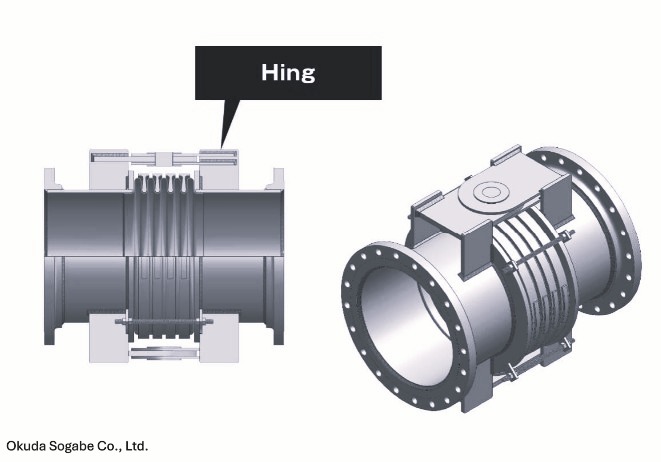

Bellows type expansion joint - Hinge type
It is effective for piping where anchors can not be accommodated completely such on the top of a tower or those around an apparatus. With hinge pins and arms, the both end are held to bind internal thrust load and only force required for bending the bellows acts on the anchor. Combining 2 or 3 pieces of Hinge Type of Expansion Joint on a single plane, integrated axial movement can be absorbed.
Supplier: Okuda Sogabe Co., Ltd. • Jepang
